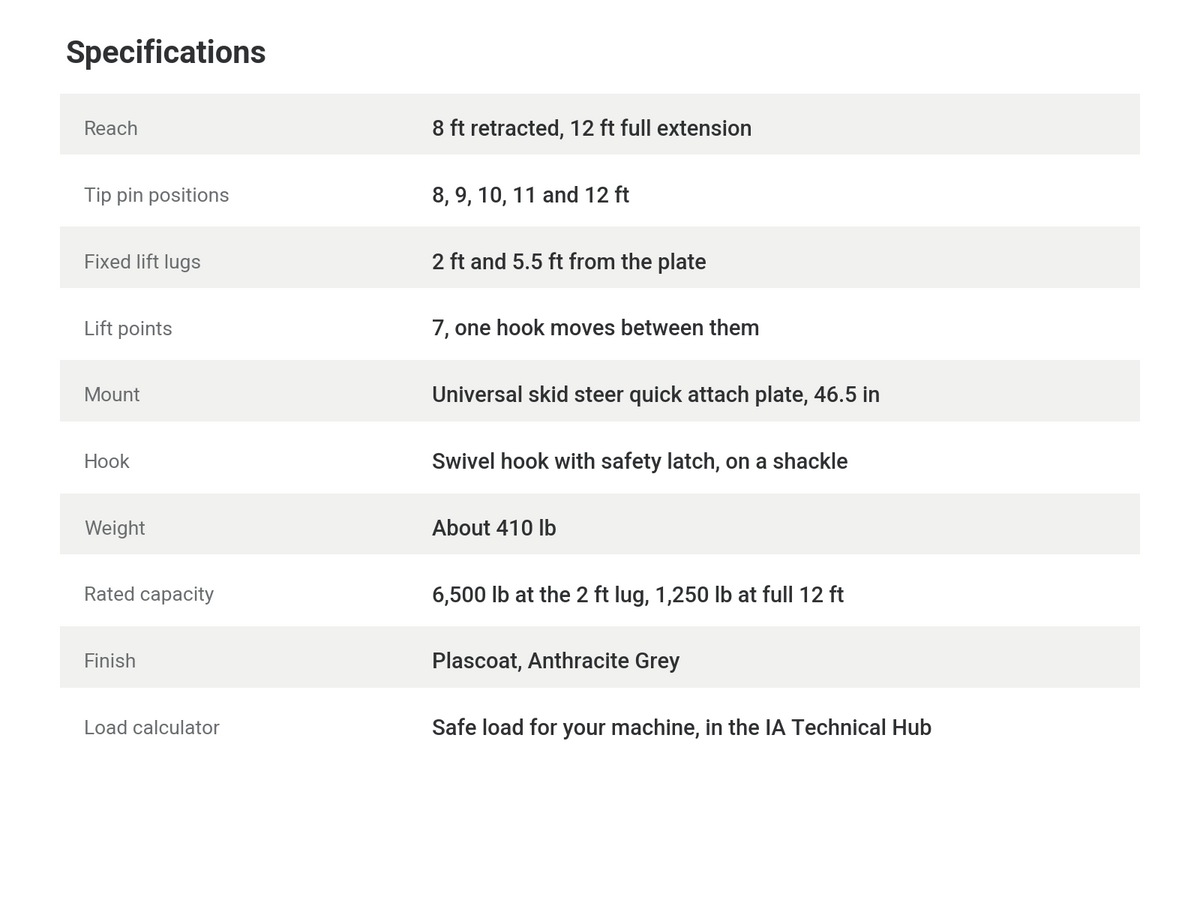

| Reach and capacity | |
|---|---|
| Model | IA-JB-65TQ |
| Rated capacity | Up to 6,500 lb at the rear lug (1,250 lb at full 12 ft reach) |
| Load center range | 24 in - 144 in (2 ft - 12 ft) |
| Lift points | 7 rated positions (2 fixed lugs + 5 tip pin positions) |
| Mount | Universal skid steer quick attach plate (ISO 24410 / SAE J2513) |
| Machines | Skid steers and compact track loaders |
| Size and weight | |
| Retracted length | 100 in (8 ft 4 in) |
| Extended length | 148 in (12 ft 4 in) |
| Width | 3 ft 10 1/2 in |
| Height (low-profile) | 20 3/4 in (at the quick attach plate) |
| Weight | 410.0 lb |
| Build and support | |
| Construction | 2-section tubular steel, continuous welds; boom gusseted into the quick attach plate |
| Hook and shackle | 3/4 in shackle and swivel hook with safety latch (one included) |
| Finish | Plascoat, Anthracite Grey |
| Compliance | Designed to meet ASME BTH-1-2023 (Design Category B, Service Class 0) and ASME B30.20. Every rating carries a 3 to 1 design margin. |
| Warranty | 3-year structural / 1-year components |
| Made in | USA |
Maximum rated load by position
| Position | Load center (in) | Max load (lb) |
|---|---|---|
| Rear lug (boom retracted) | 24 | 6,500 |
| Forward lug (boom retracted) | 66 | 3,250 |
| Tip, mark 5 (retracted, 8 ft) | 96 | 2,000 |
| Tip, mark 6 (9 ft) | 108 | 1,750 |
| Tip, mark 7 (10 ft) | 120 | 1,500 |
| Tip, mark 8 (11 ft) | 132 | 1,250 |
| Tip, mark 9 (full 12 ft) | 144 | 1,250 |
Structural capacity of the attachment only, not host machine capacity. Lugs are rated with the boom fully retracted; tip ratings apply at the pinned extension with the boom level. Capacity is always the lower of this chart or the host machine capacity chart.
Engineered different

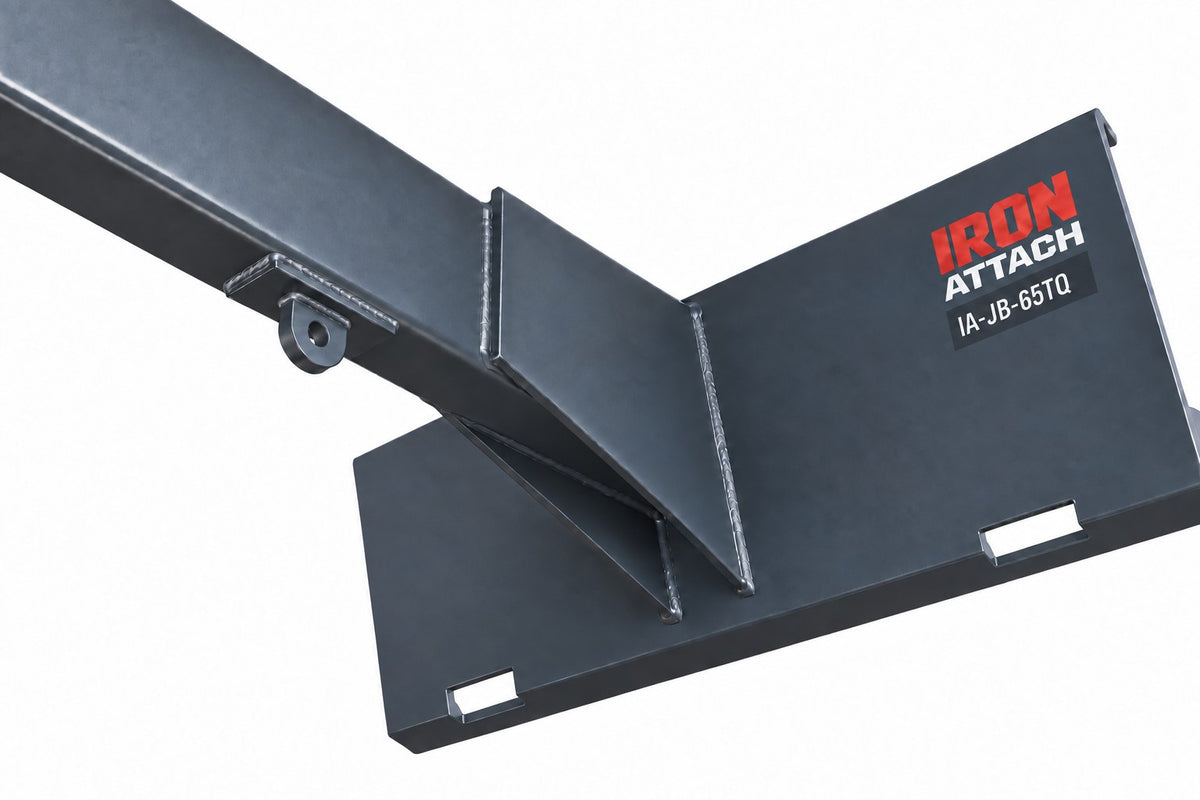

The boom runs into the quick attach plate and is welded to it with side gussets, so the load spreads into the plate instead of hanging off one weld line.
Arrows and position numbers are laser-cut, not printed, so there is nothing to wear off or peel.
Every lift point's rating is on the boom, and the scan code opens the IRON Attach Technical Hub on your phone.
A 3/4 in shackle and a swivel hook with a safety latch come with the boom.

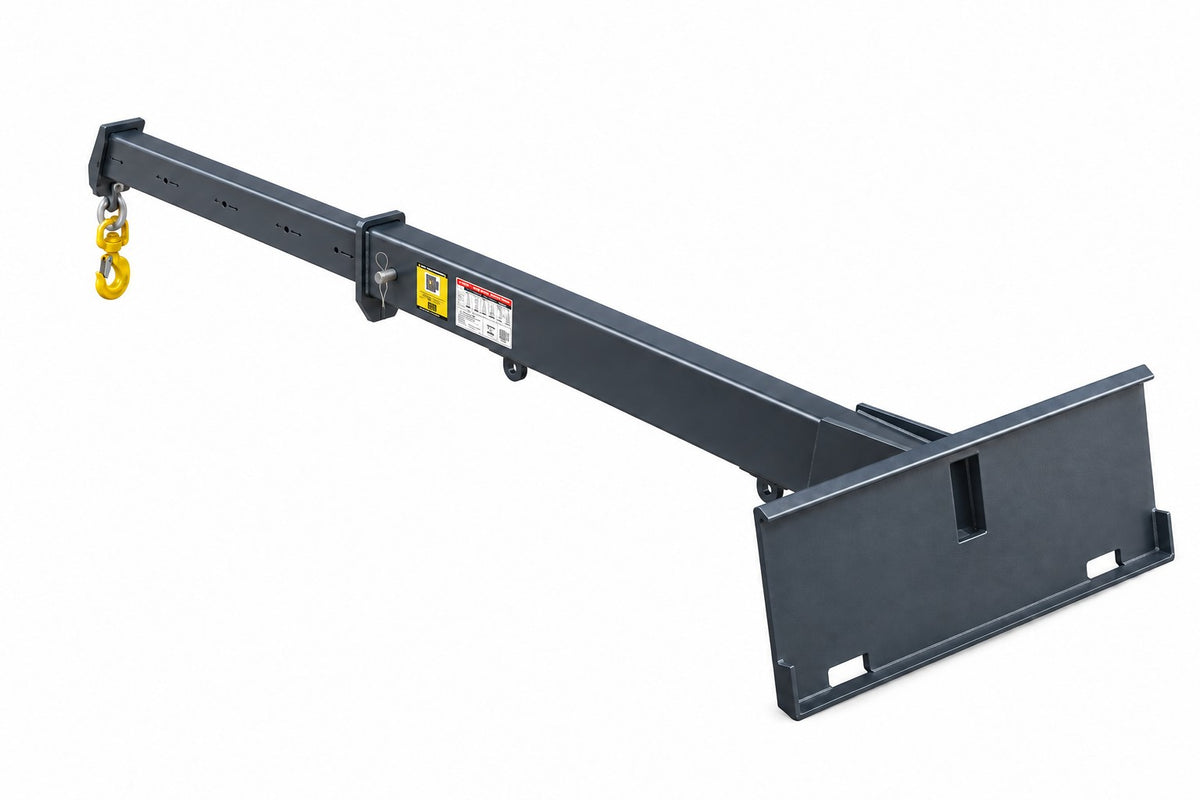

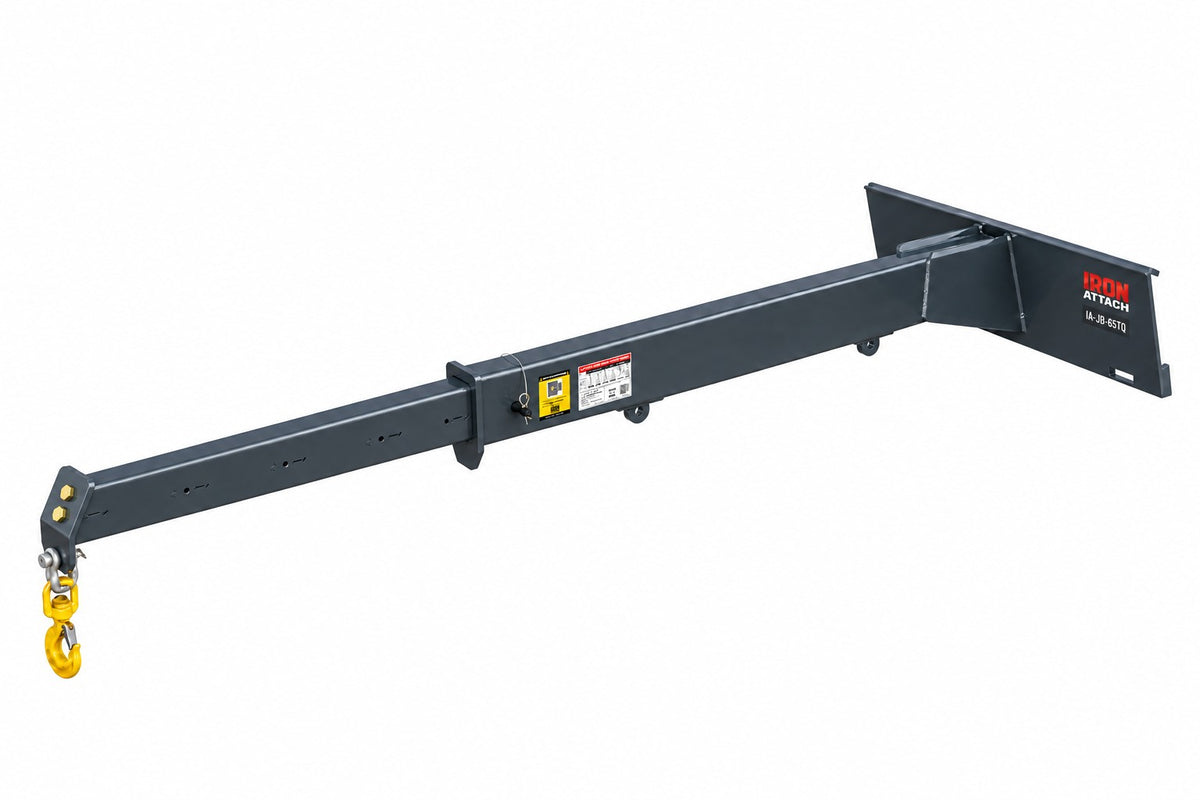

Reach 12 ft with the skid steer or track loader you already own. It latches onto your universal quick attach like a bucket, pins to the reach the pick needs, and puts the load up to 12 ft from the quick attach plate.
Why operators run it
- Skip the crane rental. Use the skid steer or compact track loader already on the job to pick the load, position it, and set it down from a rated lift point.

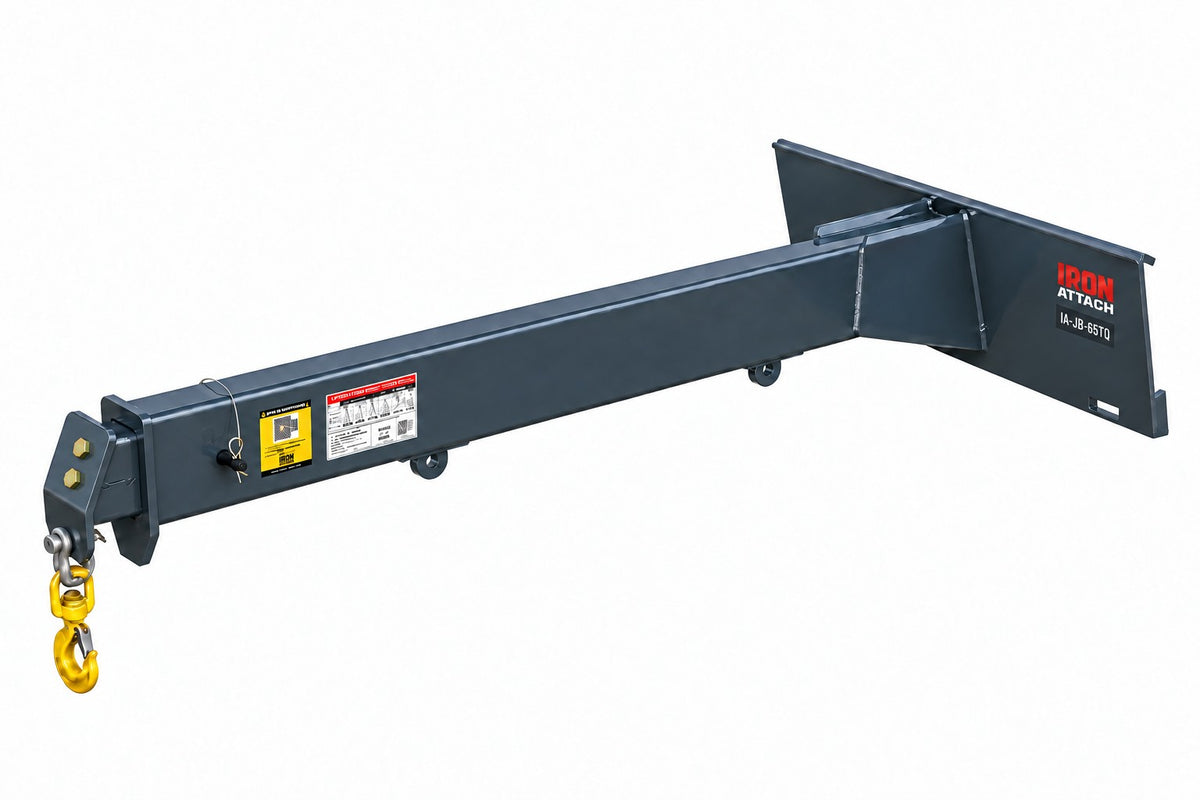

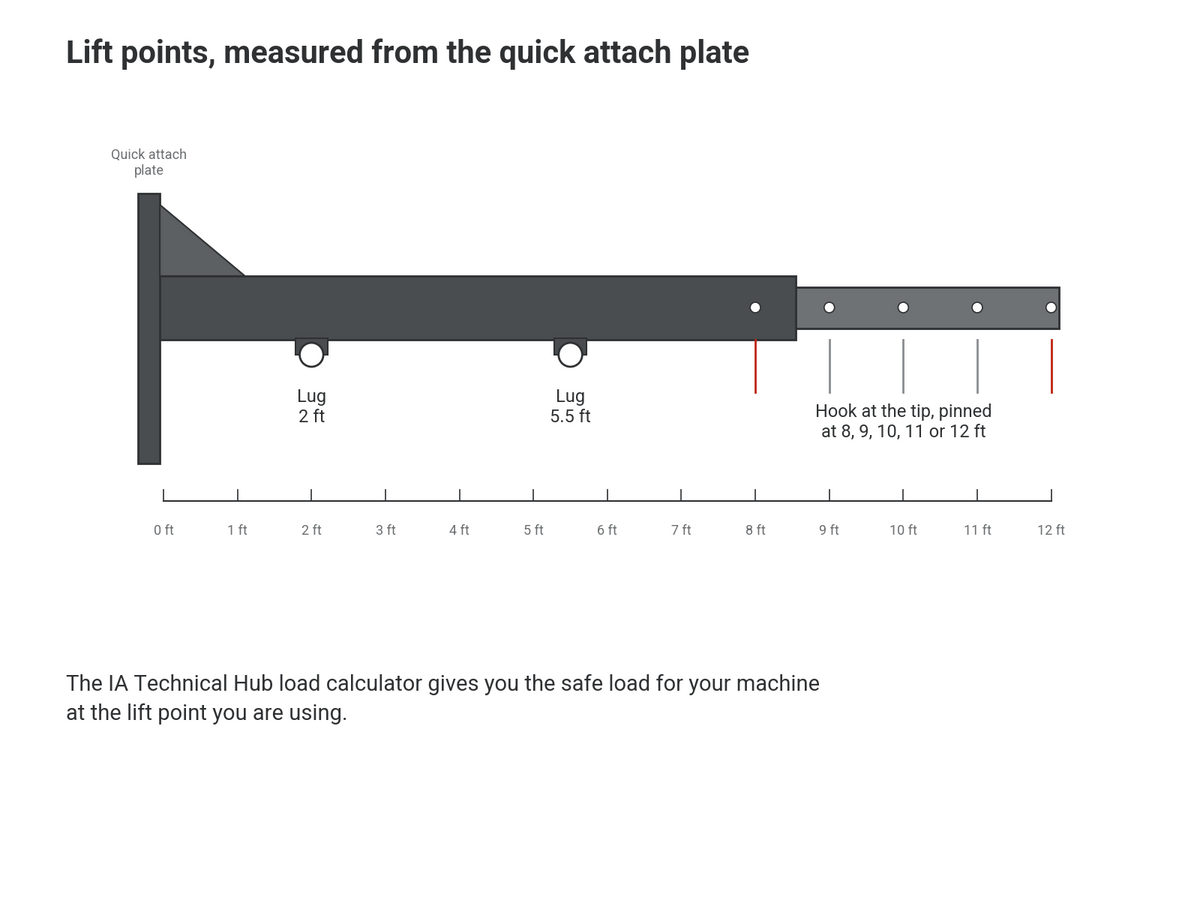

- Seven lift points, 2 ft to 12 ft. Two fixed lugs close in plus five pinned tip positions, so you set the reach to the pick.
- Keeps the load close. The rear lug sits 24 in from the quick attach plate, so your machine keeps more of its lifting power.
- Support from the people who built it. Questions about fit, rigging, or a specific pick go straight to Post Falls. Call (208) 966-4177 or email sales@ironattach.com.
Built in Post Falls, Idaho
Every jib boom is engineered and fabricated in-house by the IRON Attach team in Post Falls, Idaho, continuously welded and made in the USA. The design is validated by engineering analysis.
What you get
- IA-JB-65TQ telescoping jib boom with universal skid steer quick attach plate, 410 lb
- 3/4 in shackle and swivel hook with safety latch (one)
- 3-year structural and 1-year component warranty
Freight and lead time
Ships by freight to your jobsite or yard. Tell us your machine and the delivery address, and your quote confirms availability, freight and lead time. Near Post Falls? Pick it up and skip the freight. Or call (208) 966-4177, Monday to Friday, 9am to 4pm Pacific.
Buying for resale or rental? Start at Become a Dealer and tell us about your yard.

Questions buyers ask
Will it fit my machine?
It mounts on the universal skid steer quick attach, the same plate your bucket uses. If your skid steer or compact track loader takes a universal quick attach bucket, it takes this boom. Tell us your machine in the quote request and we confirm it.
Does it go on forklift forks?
No. It latches onto a skid steer's quick attach plate like a bucket. For forklifts and telehandlers, see the IA-JB-60T jib boom and the IA-TB-100T truss boom.
How much can I lift with it on my machine?
Whichever is lower: the boom's rating at that position, or what your machine can lift at that reach. On a skid steer, the machine's own rated operating capacity is usually the lower number by a wide margin. Check your machine's chart before every pick.
Can the extension slide out the end?
No. Fixed stops inside the boom catch the sliding section at full reach. Pull it all the way out and it stops there; it cannot fall out. Pin it at a marked position before you lift.
Is it certified?
No certifying body exists for these attachments, so nobody can honestly sell one as certified. It is built to the lifting-safety codes, and the design was stress-tested on the computer.
Will it rust?
The outside is Plascoat, a thick coating that flexes with the steel instead of chipping like paint. The inside of the tubes is not coated, so we do not call it rust-proof.
Can it be repaired if a section gets damaged?
Yes. The end plate bolts on instead of being welded shut. Take out the bolts and the sections slide apart, so a damaged section can be replaced, or the boom refinished years down the road, instead of scrapping the whole boom. Call us at (208) 966-4177 before you take it apart, and we get you the parts.
Do you sell to rental companies?
Yes. It is built for gear that changes hands every week. The marks are cut into the steel, the stops keep a renter from pulling a section out, the end plate bolts off for repairs, and every renter can scan the label for the load calculator and the manual. Tell us about your fleet at Become a Dealer.
What does freight cost, and how soon can I get one?
Freight is quoted to your delivery address, and lead time comes with the same quote. Near Post Falls, pick it up and skip the freight.
Running forklifts or telehandlers too? The IA-JB-60T jib boom puts the same 12 ft telescoping boom on your forks, and the IA-TB-100T truss boom reaches 16 ft. And if none of them fits your job, we build custom attachments for forklifts, telehandlers, and skid steers, engineered and built like everything else we sell. Tell us the machine, the job, and the load.
