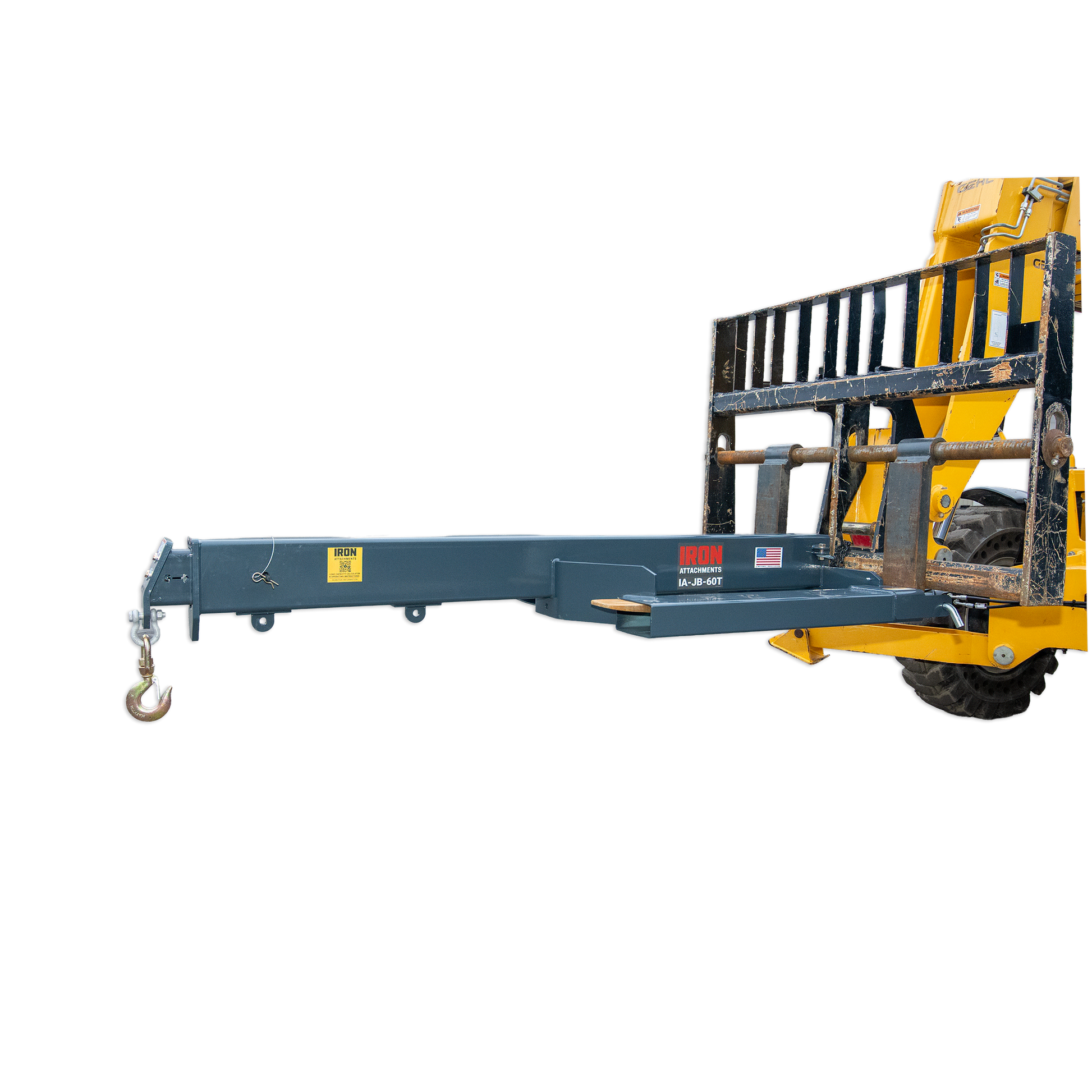

Telescoping Jib Boom
Replaces improvised fork rigging with an engineered attachment. Up to 12 ft of reach and 9 hook positions.
Lifts 6,000 lb up close, 2,100 lb at 12 ft

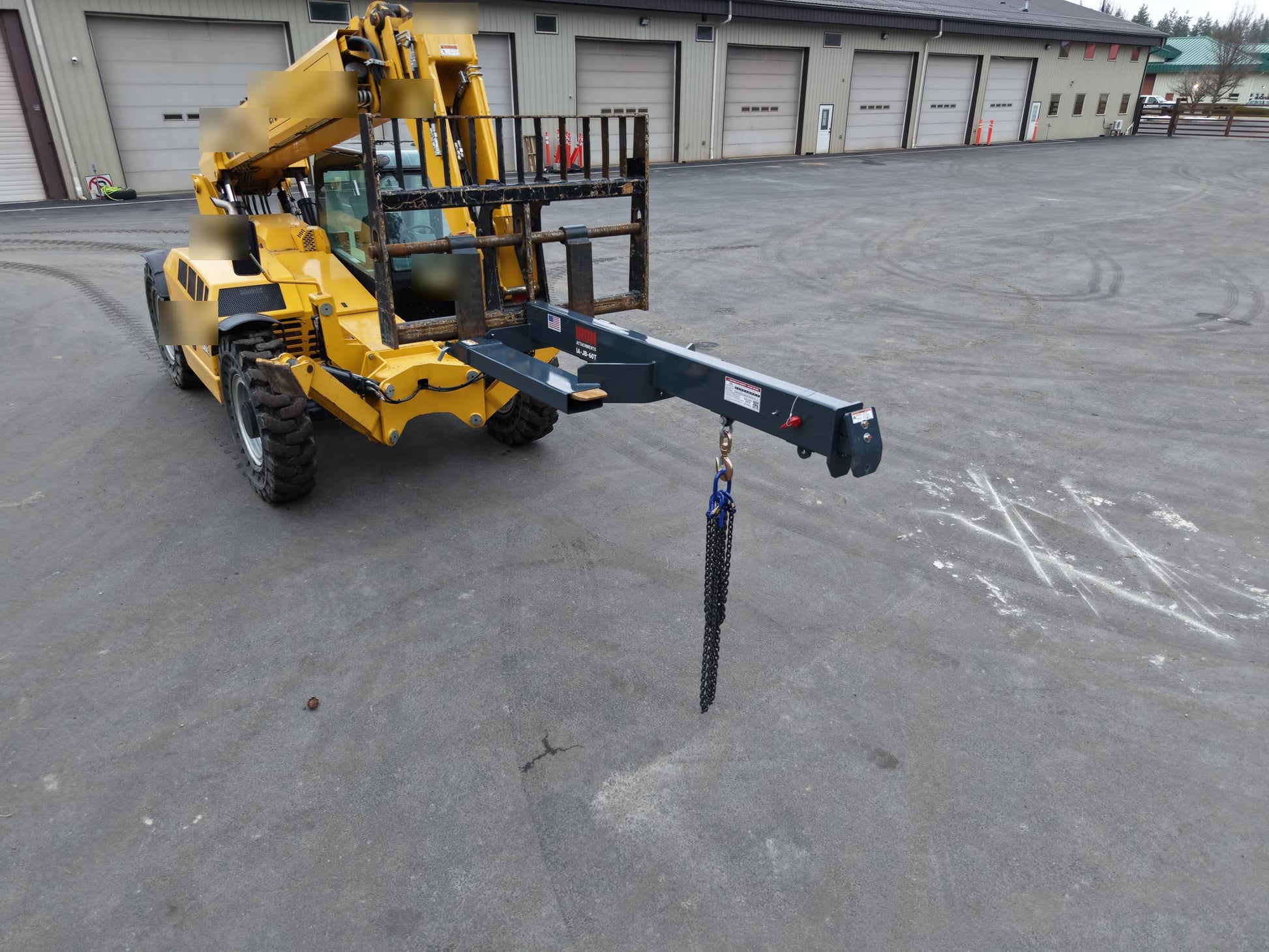

Fits forklifts and telehandlers
- Pins right the first time. Position marks are laser-cut into the steel, so you read the mark and pin it.
- Keeps the load close. The closest hook sits 24 in from the fork face, so your machine keeps more of its lifting power.
- Built in Idaho to take abuse. A thick coating that flexes instead of chipping like paint, and a 3-year structural warranty.
plus freight, quoted to your zip
Documents
| Model | IA-JB-60T |
|---|---|
| Rated capacity | Up to 6,000 lb (2,100 lb at full extension) |
| Load center range | 24 in - 144 in (2 ft - 12 ft) |
| Lift points | 9 (4 fixed, 5 telescoping) |
| Retracted length | 103 in (8 ft 7 in) |
| Extended length | 151 in (12 ft 7 in) |
| Width | 3 ft 3 1/2 in |
| Height (low-profile) | 11.5 in |
| Weight | 465.0 lb |

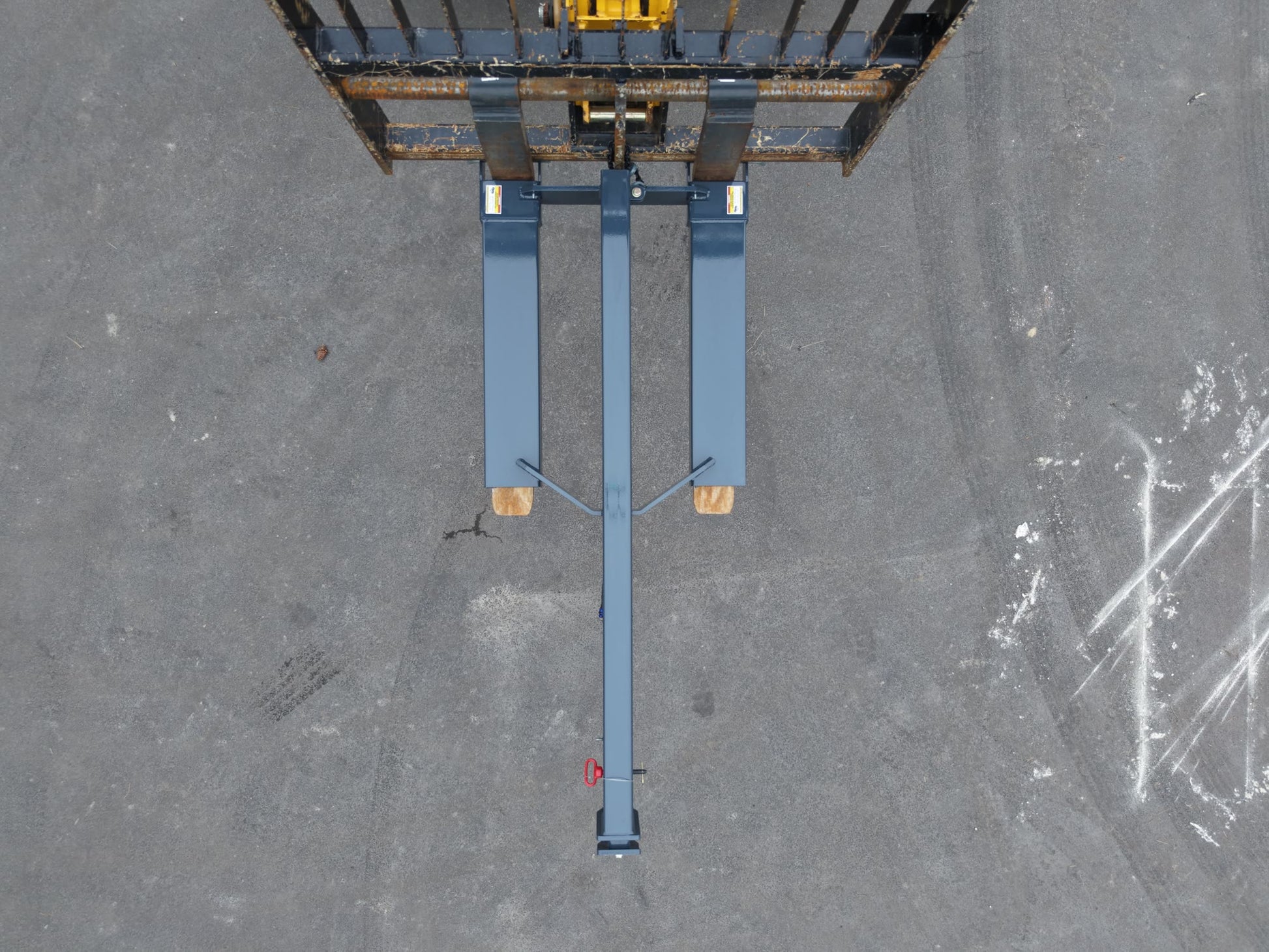

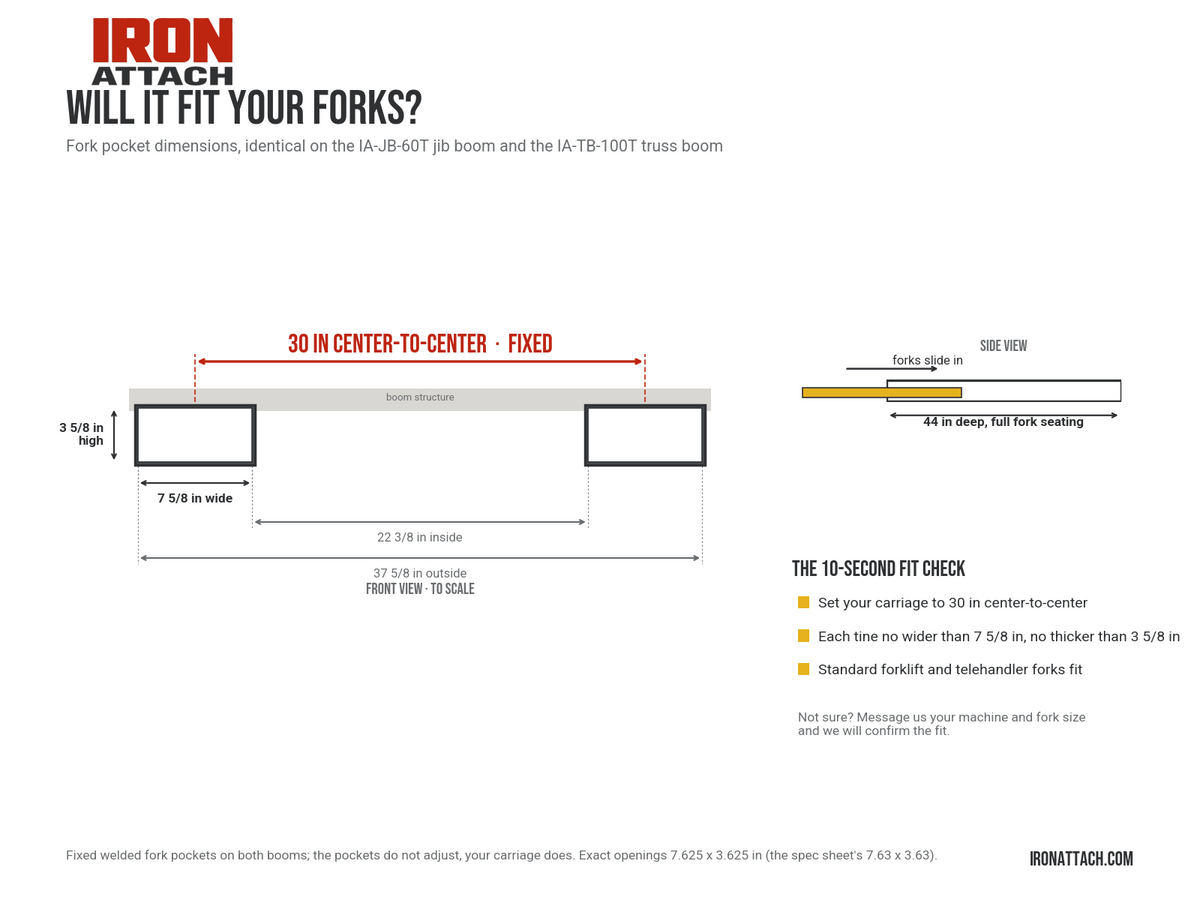

| Fork pocket length | 44 in |
| Fork pocket inside dimensions | 7.63 in (W) x 3.63 in (H) |
| Fork spacing | 30 in center-to-center (fixed); 22.38 in inside, 37.63 in outside |
| Fork retention | Retaining pins behind fork heels |
| Safety chain | Safety chain to carriage anchor points |
| Construction | 2-section tubular steel, continuous welds |
| Hook and shackle | 3/4 in bolted shackle and heavy-duty swivel hook (one included) |
| Finish | Plascoat, Anthracite Grey |
| Compliance | Designed to meet ASME BTH-1-2023 (Design Category B, Service Class 0) and ASME B30.20, with ANSI/ITSDF B56.6 and applicable OSHA requirements addressed in the design. Every rating carries a 3 to 1 design margin. Validated by engineering analysis and physical load testing. |
| Warranty | 3-year structural / 1-year components |
| Made in | USA |
Maximum rated load by position
| Position | Load center (in) | Max load (lb) |
|---|---|---|
| 1 | 24 | 6,000 |
| 2 | 48 | 6,000 |
| 3 | 66 | 6,000 |
| 4 | 84 | 6,000 |
| 5 | 96 | 5,800 |
| 6 | 108 | 5,000 |
| 7 | 120 | 3,800 |
| 8 | 132 | 2,700 |
| 9 | 144 | 2,100 |
Structural capacity of the attachment only, not host machine capacity. Obtain official down-rated capacity from the lift truck manufacturer.
Stop rigging off the fork tips. The IA-JB-60T replaces improvised fork rigging with an engineered attachment, pins to the reach you need, and puts the load where you need it, up to 12 ft beyond the fork face.
Built for contractors placing mechanical equipment and material beyond the forks, and for equipment dealers and rental fleets that need a rugged, purpose-built lifting attachment.
Engineered different.
The IA-JB-60T was designed from scratch as a two-section telescoping jib boom, not a rebadged import, and the choices show up on the jobsite.
- Pins right the first time. Position marks are laser-cut into the steel, not painted on or stuck on, so you read the mark and pin it without guessing.
- A coating built to take abuse. Finished in Plascoat, a thick thermoplastic coating that flexes with the steel instead of chipping and cracking like ordinary paint, helping protect the boom from corrosion through hard jobsite and rental use.
- Keeps the load close. The closest hook position sits just 24 in from the fork face, helping preserve more of your forklift or telehandler's available lifting capacity. The Hub's Load Calculator gives you the allowable load for your machine.
- Clear sightlines. The low-profile design keeps the load visible over the boom and stores flat on a rack shelf between jobs.
Why operators run it

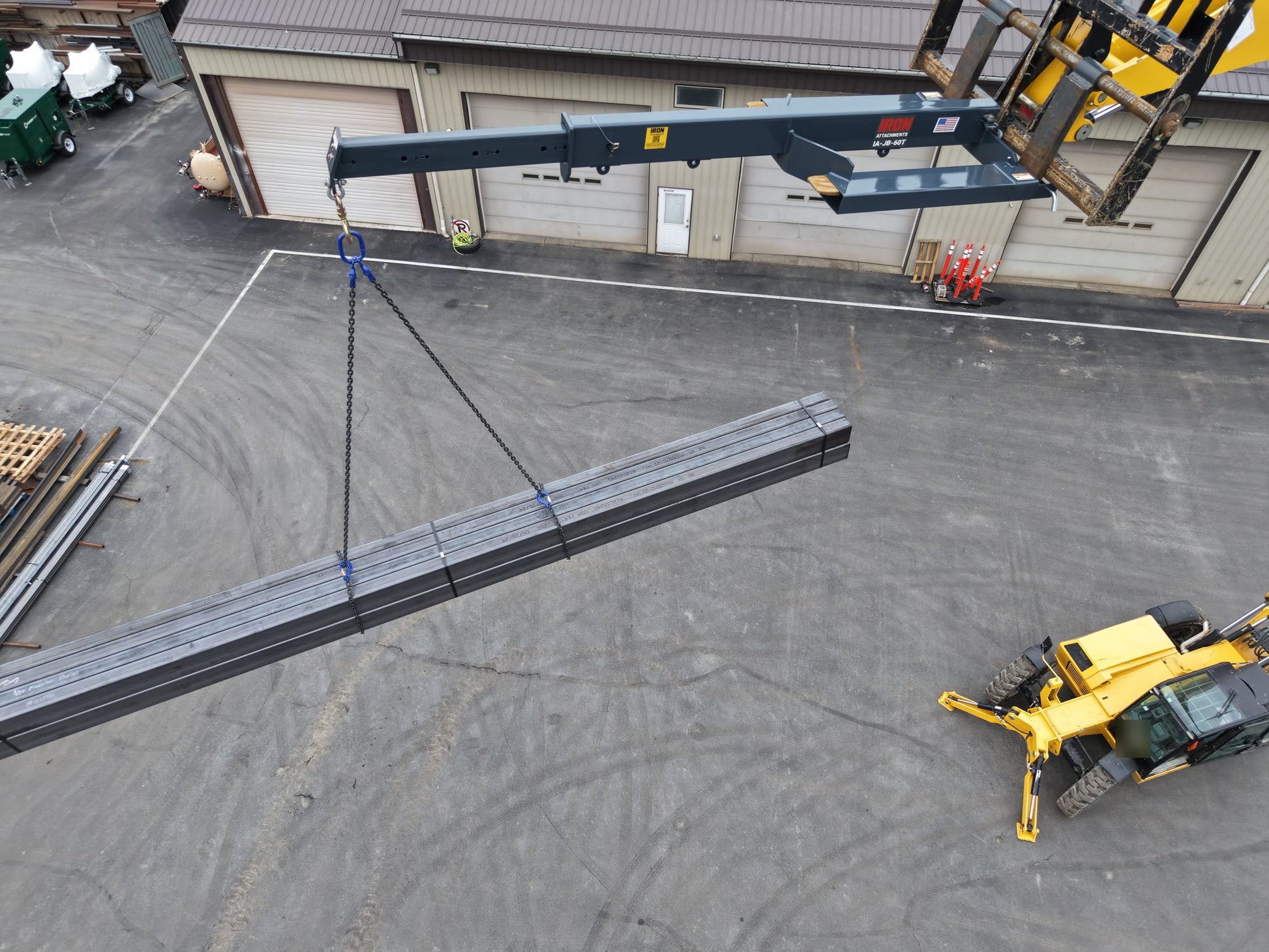

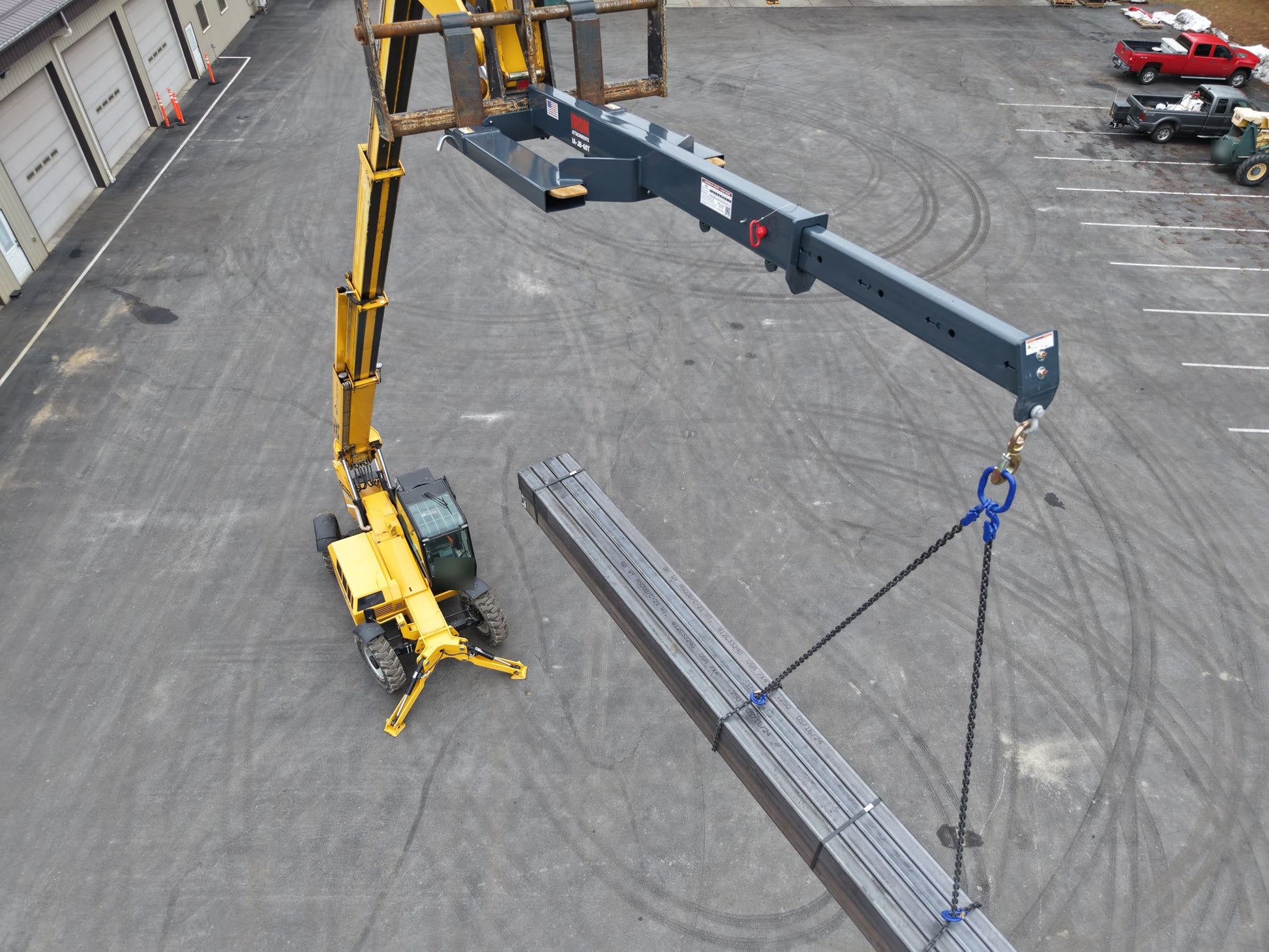

- Place the load, don't fight it. Use the forklift or telehandler already on the job to pick the load, position it, and set it down from a rated lift point.
- Lifts up to 6,000 lb at the four fixed hook positions. At full 12 ft extension it lifts 2,100 lb.
- Nine rated hook positions. Four on the fixed boom plus five telescoping, so you set the reach to the pick.

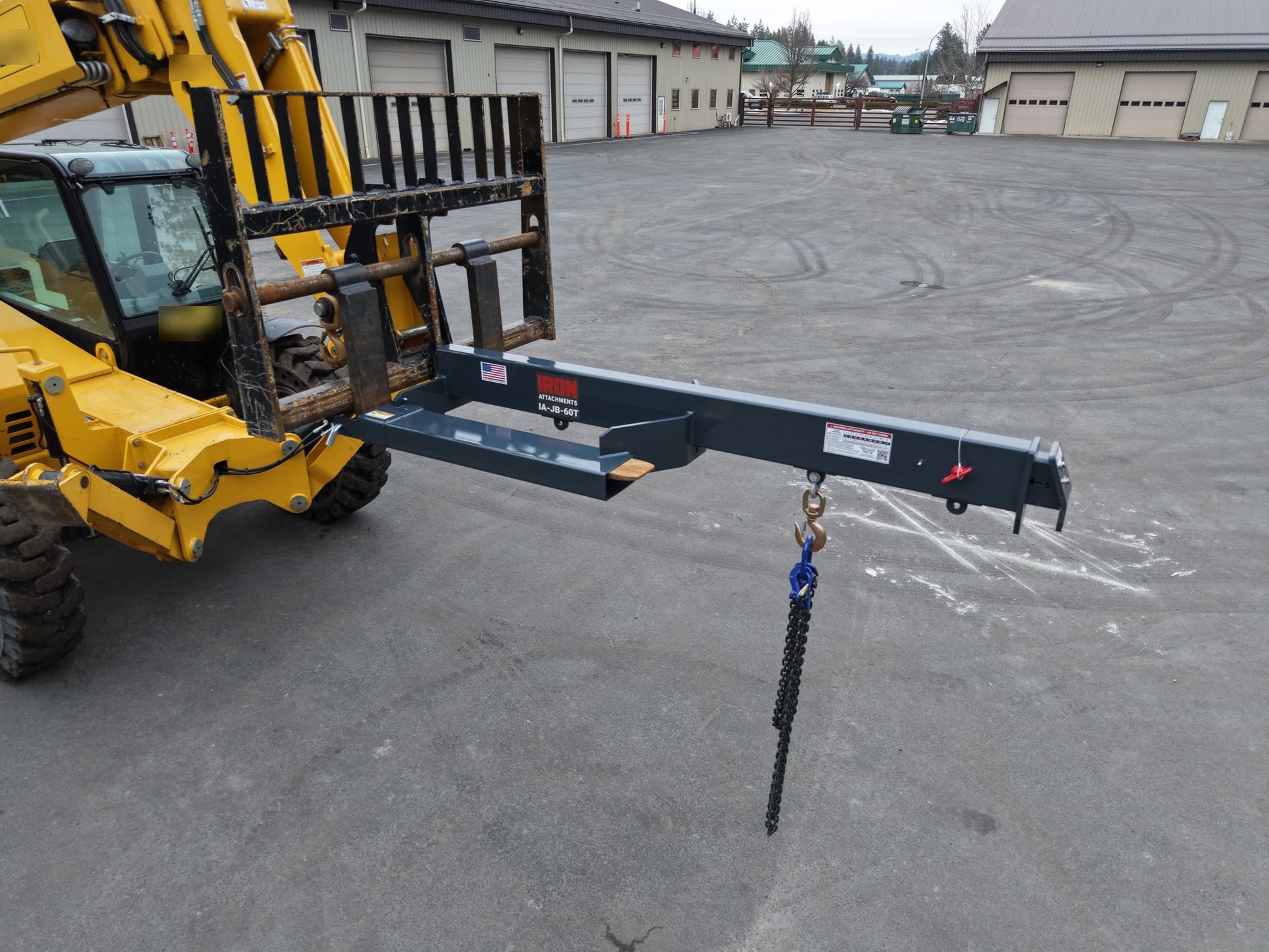

- Every hook position is marked with its rating. The load chart rides on the boom, not in a drawer.
- Support built into every boom. Scan the QR label and the IA Technical Hub opens on your phone with the manual, setup videos, 24/7 support assistant, and a load calculator that gives the allowable load for your machine and hook position.
Engineered and built in Post Falls, Idaho
Every jib boom is engineered and fabricated in-house by the IRON Attach team in Post Falls, Idaho. Made in the USA, continuously welded, and validated by engineering analysis and physical load testing. The applicable design standards are listed in the specifications above.
What you get
- IA-JB-60T telescoping jib boom, 465 lb
- 3/4 in bolted shackle and heavy-duty swivel hook (one)
- Retaining pins that lock behind the fork heels
- Safety chain to the carriage anchor points
- QR decal on the boom, opening the IA Technical Hub
- 3-year structural and 1-year component warranty
Freight and lead time
Ships by freight to your jobsite or yard. Tell us your machine and the delivery address, and your quote confirms availability, freight and lead time. Near Post Falls? Pick it up and skip the freight. Get your delivered price, or call (208) 966-4177, Monday to Friday, 9am to 4pm Pacific.
Buying for resale or rental? Start at Become a Dealer and tell us about your yard.
Photos are of production booms.
Full specifications and maximum rated load by position are in the tables above.
Need more reach or a heavier pick than this jib? The IA-TB-100T truss boom reaches 16 ft and lifts 10,000 lb up close. And if neither boom fits your job, we build custom attachments for forklifts, telehandlers, and skid steers, engineered and built like everything else we sell. Tell us the machine, the job, and the load.
