IA-TB-100T Telescoping Truss Boom, 10,000 lb, for Forklifts and Telehandlers
IA-TB-100T Telescoping Truss Boom, 10,000 lb, for Forklifts and Telehandlers
Tell us your machine and how to reach you. A small good-faith deposit holds your build slot; we sort it with you and confirm your delivery window by email.

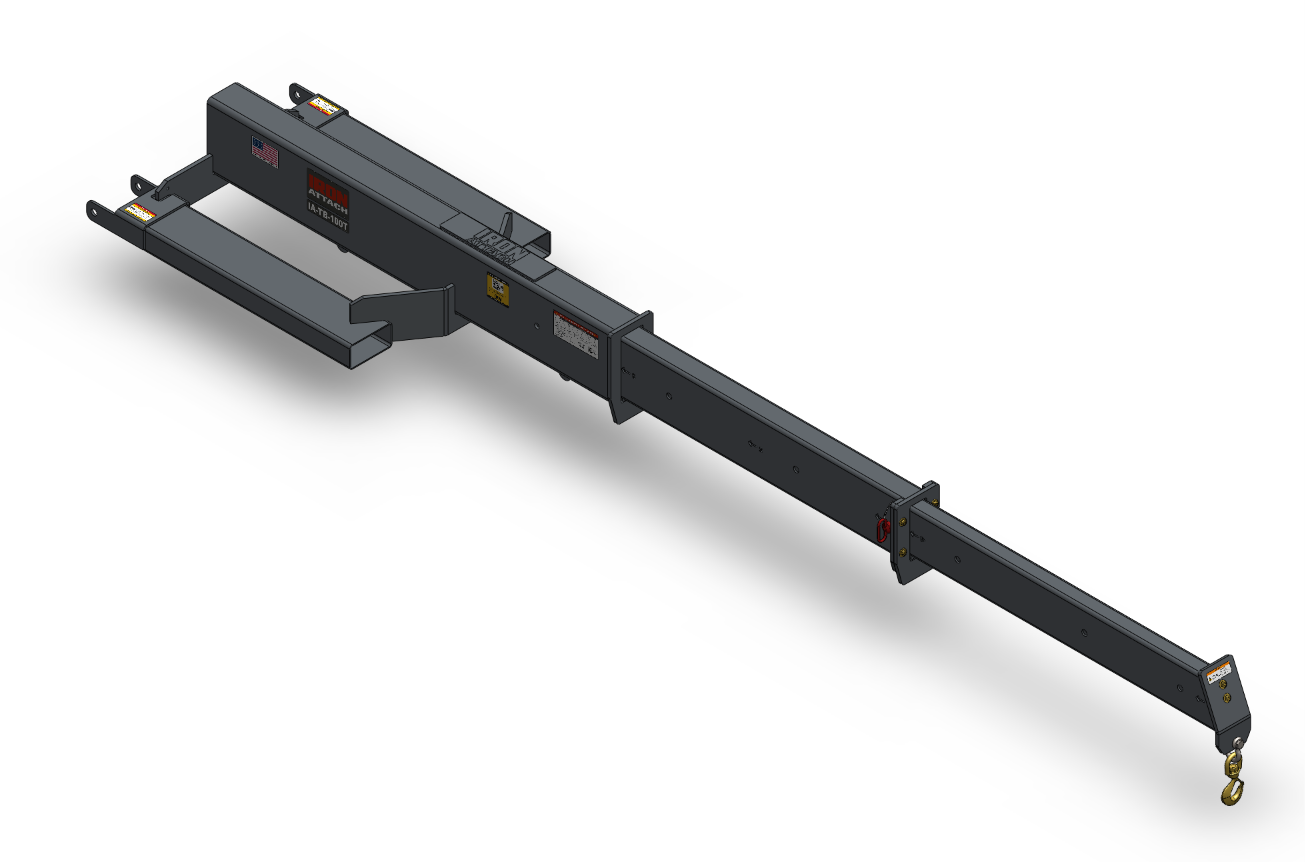

Set trusses without renting a crane. The IA-TB-100T slides onto the forks you already own, pins to the reach you need, and puts beams and long awkward loads where they go, out to 16 ft.
Reserving takes a minute. Tell us your machine; we confirm your build slot and delivery window by email.
- Six rated lift positions. Three telescoping sections, 4 pinned tip positions, 2 fixed lift lugs.
- Lifts up to 10,000 lb at the rear lug, boom retracted, and 2,000 lb at the full 16 ft tip.
- Fits standard forklift and telehandler forks. Fixed pockets, 30 in center to center.

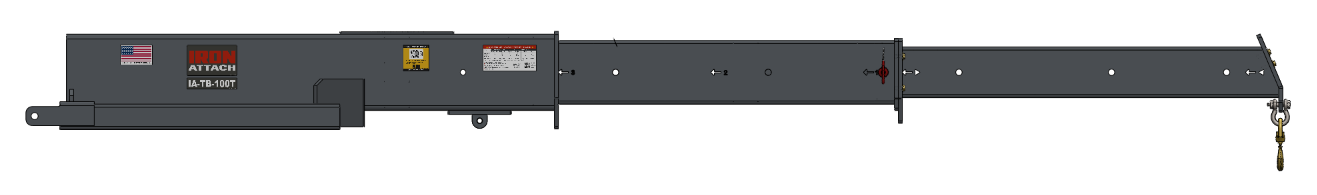

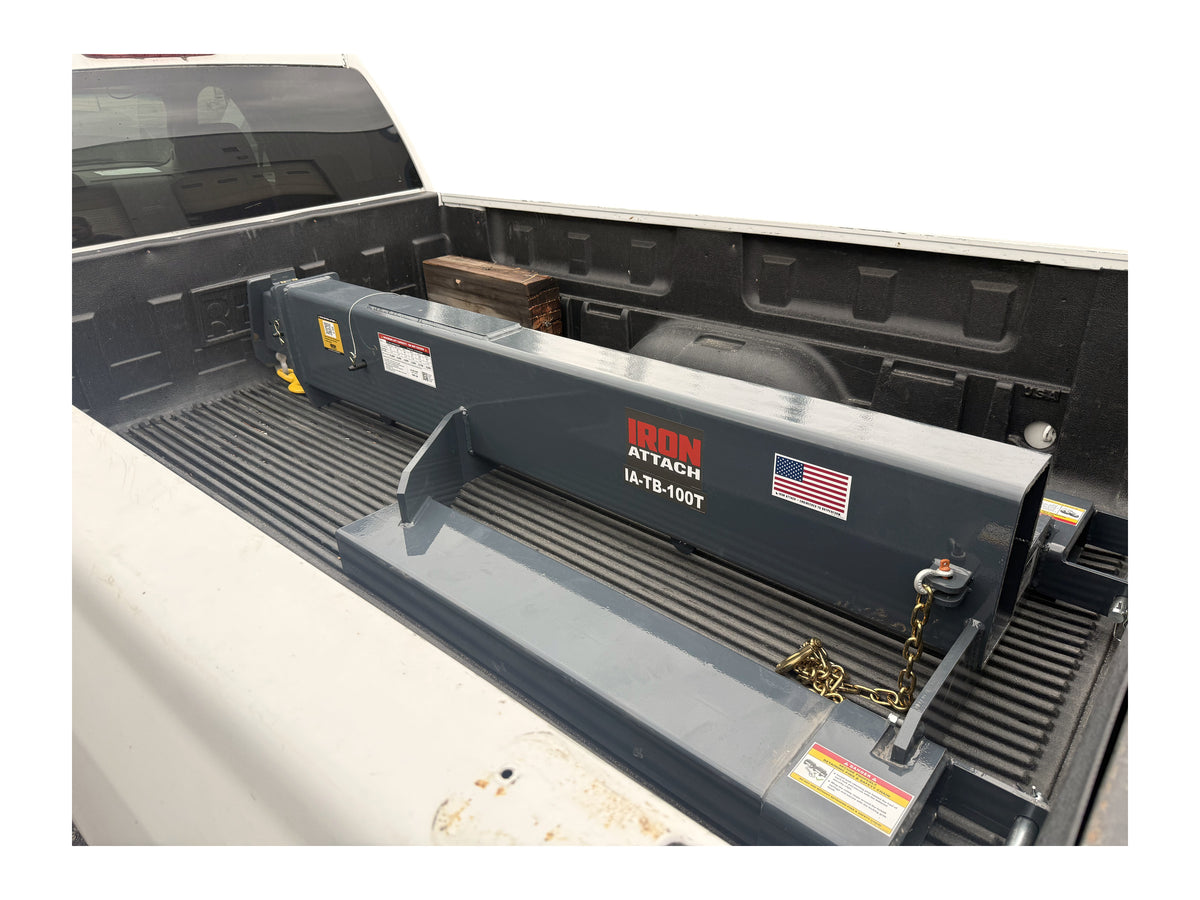

- Reaches 16 ft, packs down to 8 ft. Hauls in a full-size 8 ft pickup bed, stores on a rack shelf. 820 lb, so you know what is on your forks before the pick.

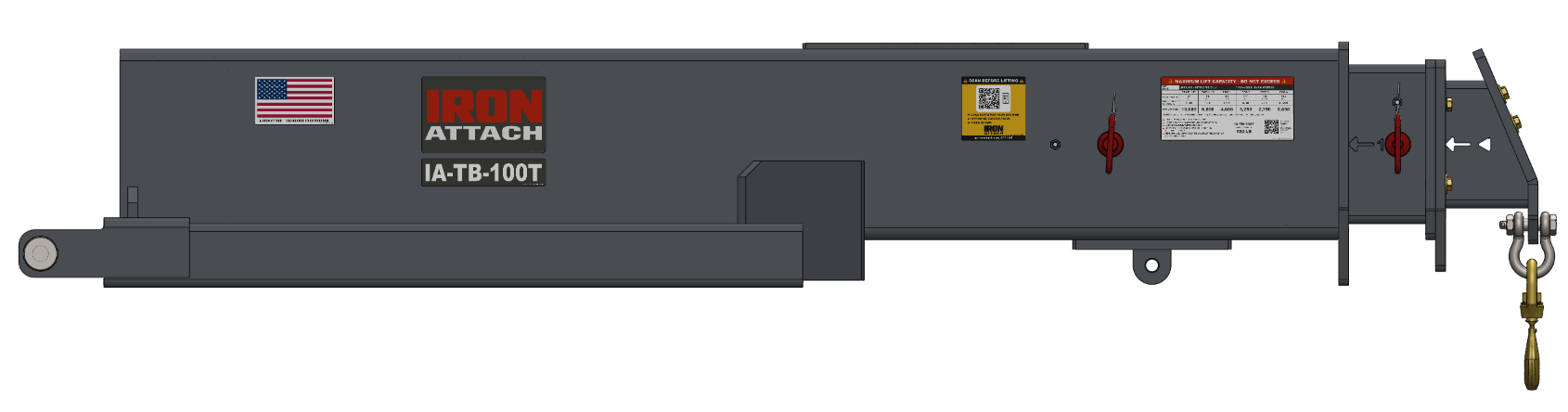

- Every lift point is marked with its rating. The load chart rides on the boom, not in a drawer.
- Built to hold what it says it holds. Proof tested at 125 percent, built to the lifting-safety codes. The ratings are earned, not just painted on.
- American-made. US steel, continuous welds, a Plascoat finish that will not rust out in a season.
Every unit's QR opens the IA Technical Hub: manual, load calculator with your machine's safe load at every position, and a 24/7 assistant. Know your numbers before the load leaves the ground.
Images are production-design renders. Field photos are coming.
| Rated capacity | Up to 10,000 lb (2,000 lb at full 16 ft reach) |
|---|---|
| Load center range | 24 in - 192 in (2 ft - 16 ft) |
| Hook positions | 6 rated positions (2 fixed lugs + 4 tip pin positions) |
| Retracted length | 96 in (8 ft) |
| Extended length | 198 in (16 ft 6 in) |
| Width | 39 in (across fork pockets) |
| Height (low-profile) | 15.5 in |
| Weight | 820.0 lb |
| Fork pocket length | 44 in |
| Fork pocket inside dimensions | 7.63 in (W) x 3.63 in (H) |
| Fork spacing | 30 in center-to-center (fixed); 22.38 in inside, 37.63 in outside |
| Fork retention | Retaining pins behind fork heels |
| Safety chain | Safety chain to carriage anchor points |
| Construction | 3-section telescoping steel truss boom, continuous welds |
| Finish | Plascoat (Anthracite Grey) |
| Compliance | Designed to meet ASME BTH-1-2023 (Design Category B, Service Class 0) and ASME B30.20. Proof tested at 125 percent. |
| Warranty | 3-year structural / 1-year components |
| Made in | USA |

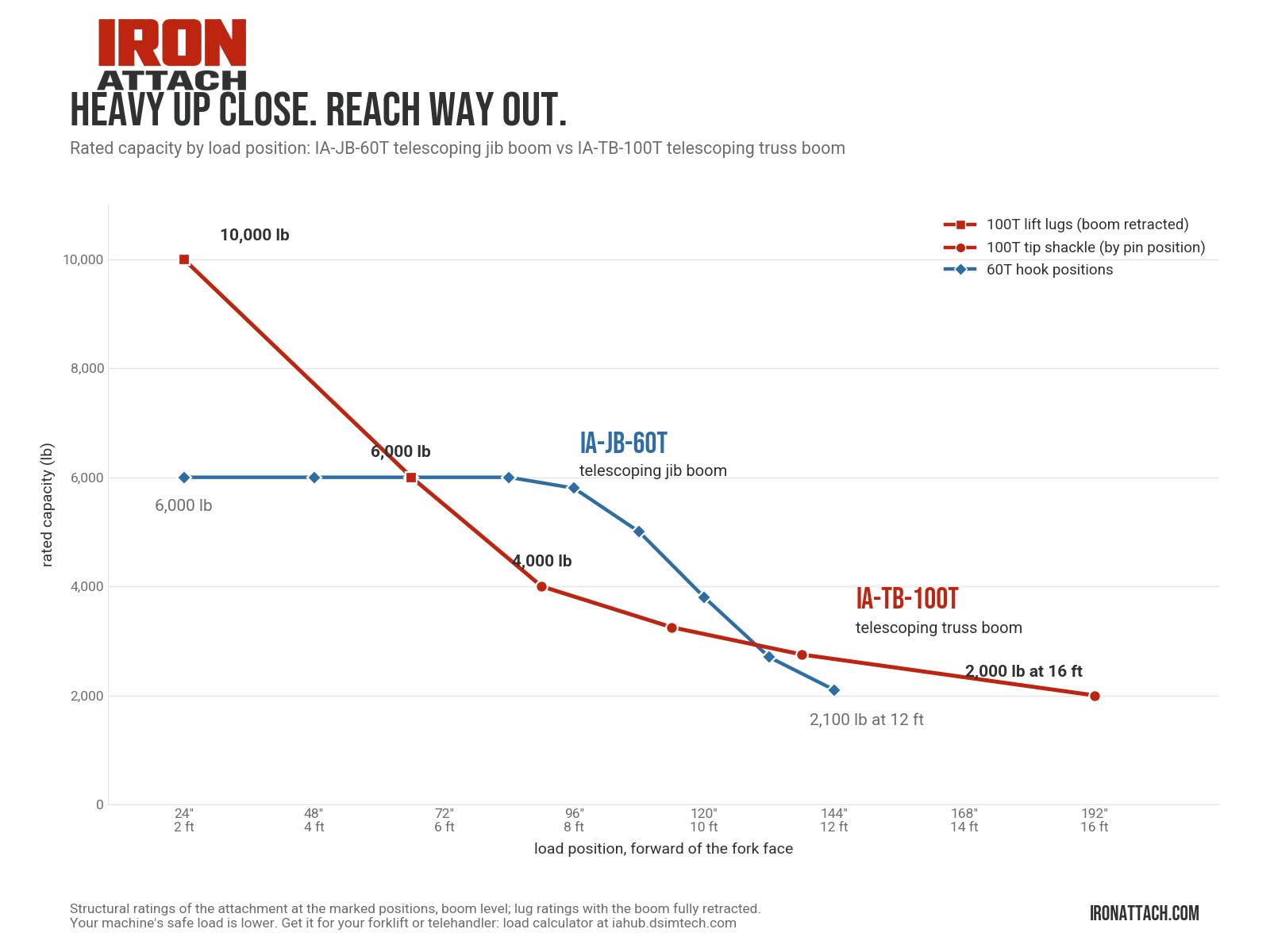

Maximum rated load by hook position
| Hook position | Load center (in) | Max load (lb) |
|---|---|---|
| Rear lug (boom retracted) | 24 | 10,000 |
| Forward lug (boom retracted) | 66 | 6,000 |
| Tip, Pos 1 (retracted, 7.5 ft) | 90 | 4,000 |
| Tip, Pos 2 (9.5 ft) | 114 | 3,250 |
| Tip, Pos 3 (11.5 ft) | 138 | 2,750 |
| Tip, Pos 4 (full 16 ft) | 192 | 2,000 |
Structural capacity of the attachment only, not host machine capacity. Lugs are rated with the boom fully retracted; tip ratings apply at the pinned extension with the boom level. Capacity is always the lower of this chart or the host machine capacity chart.
Need something this boom does not do? The TB-100T exists because a local contractor asked for a boom that did not exist. If a load hangs from it, we can engineer it, build it, and proof test it like everything else we sell. Tell us the machine, the load, and the reach.
